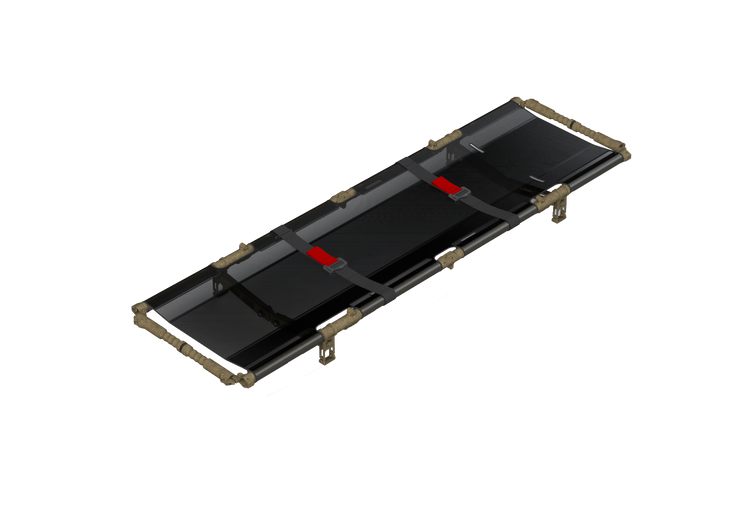

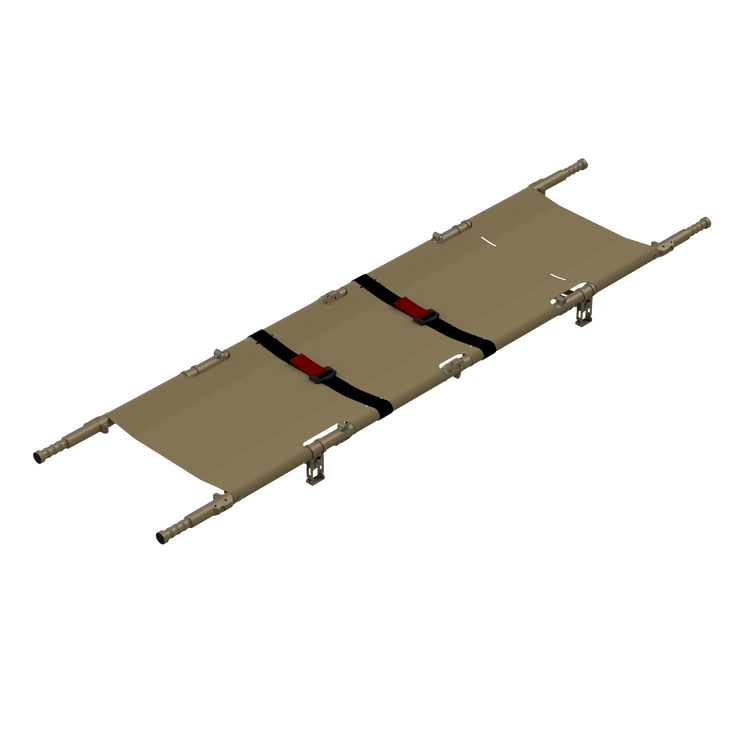

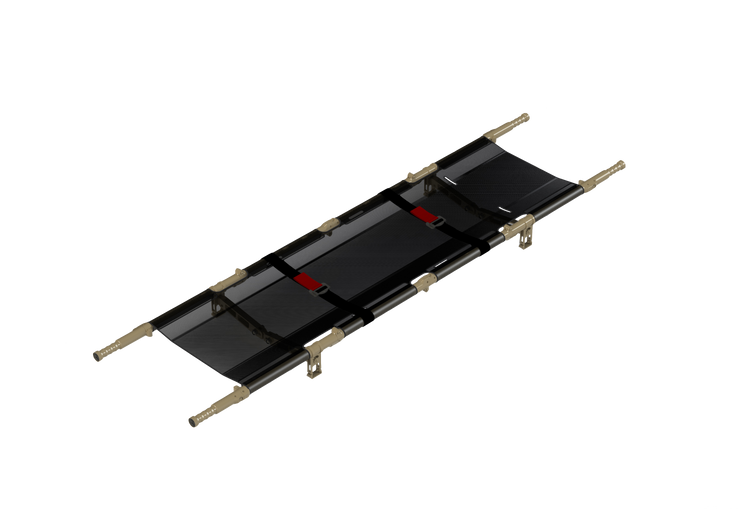

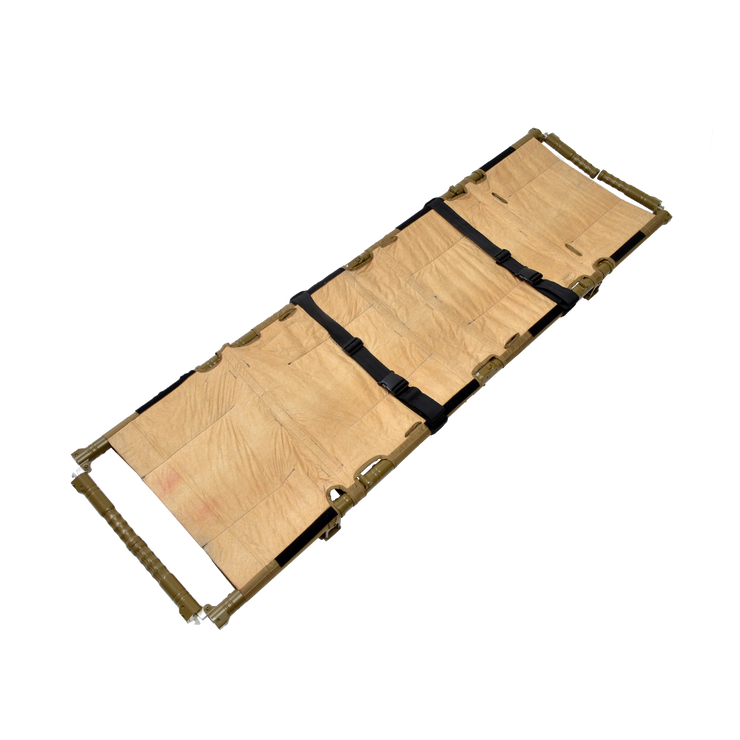

Special Operations Forces Litter (SOF-L)(APE)

Regular price $938.81 Save $-938.81
100 in stock

NSN 6530-01-659-8075

Special Operation Forces Litter (SOF-L) also known as APE Litter (All Purpose Evacuation) is ideal for mounted operations, and compatible with multiple evacuation platforms. This is a quad folding litter that deploys from the folded configuration to patient carrying configuration faster than all others. The APE litter allows for the carrying of patients over rough terrain for extended distances. All components of the litter frame are field replaceable, including bed covers and patient restraints. Self leveling feet mitigate damage to rotary wing floors. Optional items include a Spare Parts Kit (SPK), litter carrier, Mesh-Decon, TCCC or Fluid Absorbent bed covers.

Fielded since 2011 in the USSOCOM TCCC CASEVAC Program.

Features:

  • Folding handles make this litter ideal for loading in vehicles and aircraft
  • Removable and replaceable patient restraints (alloy buckles)
  • Multiple, removable and replaceable covers available
  • Modular Frame - only NATO Litter with field replaceable parts
  • A spare parts kit (SPK) is available
  • Self-leveling feet prevent damage to floor of aircraft
  • Easy-to-decontaminate polypropylene mesh cover
  • Globally sourced and Trade Compliant
  • Assembled in U.S.A.
Height
5.0 in 12.70 cm
Width (Max)
22.0 in 55.88 cm
Width (Min)
14.5 in 36.83 cm
Length (Handles Deployed)
91.0 in 231.14 cm
Length (Handles Folded)
74.0 in 187.96 cm

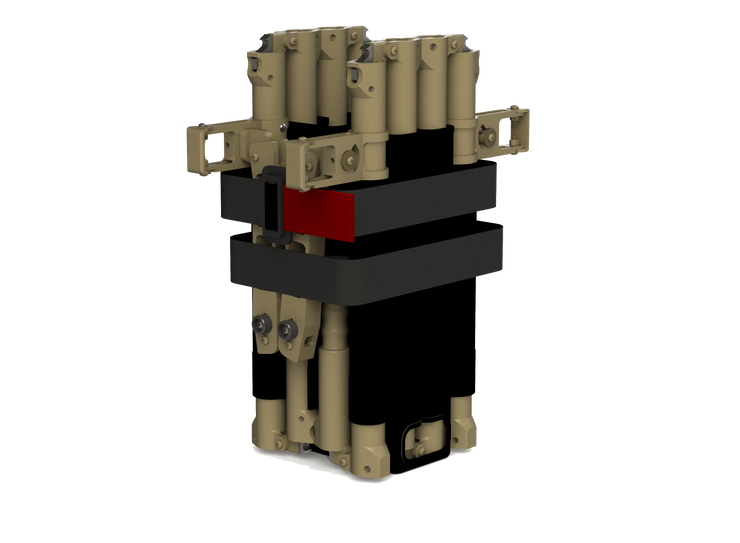

Length (Litter Folded)
19.0 in 48.26 cm
Weight
19.0 lbs. 8.61 kg
Load Rating
350 lbs. 158.75 kg
