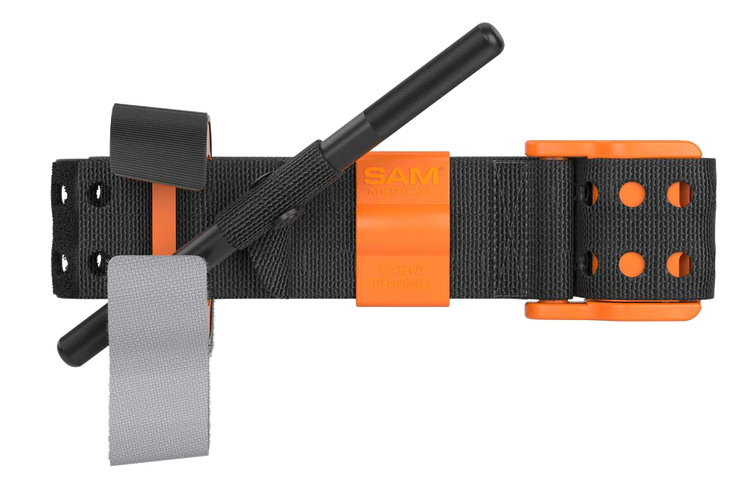

Engineered for rapid application, SAM XT’s innovative design requires fewer windlass turns, and enables easier, faster training and intuitive use. Meets MIL-STD 810G for durability.
TRUFORCEBUCKLE
Slack is the main cause of failed tourniquet application. The TRUFORCE Buckle technology auto-locks to eliminate nearly all tourniquet slack by incorporating innovative baseline force control, activating the locking prongs.
ENGINEERED TO PRESERVE LIFE
TIME BAND-Weather-resistant hook and loop system functions when fully submerged, providing maximum security in the harshest weather. Outer material is optimized for night vision.
WINDLASS C-HOOKS-Secures the Metal Windlass Rod using an intuitive angular design, making windlass locking easier and more efficient.
TRUFLEXTM PLATE- Durable nylon construction distributes force as targeted pressure for maximum strength and flexibility, able to bend on smaller extremities without breaking.
METAL WINDLASS ROD-Machined from extruded bars of strong, lightweight 6061-T6 true billet aluminum for consistent reliability when compared to plastic composites.
PRECISION STRAP-Velcro-dependent tourniquets can fail when wet or dirty. The all-weather Precision Strap is made of single-layer nylon webbing. It features intervaled holes that lock with the TRUFORCETM Buckleto create a consistent, efficient primary security system. Thesecondary hook and loop system secures the remaining strap, adding stability and safety.
PRECISION TAB Intuitive design allows for quicker, easier tourniquet application. Material is optimized for night vision.
PACKAGED SIZE & WEIGHT
Length: 2.5 in (6.3 cm) Width: 1.5 in (3.8 cm) Height: 7.25 in (18.4 cm) Weight: 3.8 oz (108 g)
OPERATING SPECIFICATIONS
TRUFORCETM Buckle technology auto-locks to engage strap holes within circumferential range: 5.5 in - 35 in (13.9 cm - 88.9 cm)
