°M STATION

NSN # 6515-22-635-9513

Part # BSDMEQ13979

Please Call for Pricing

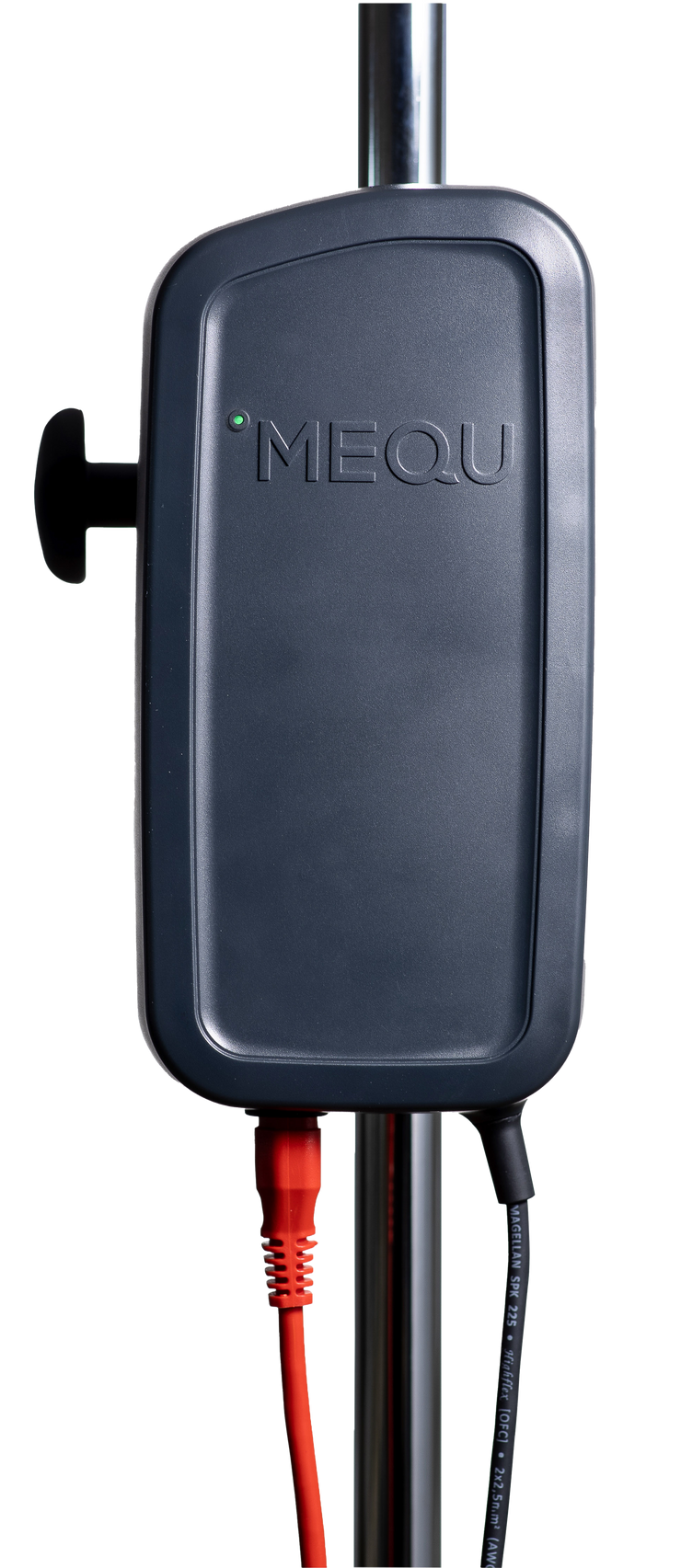

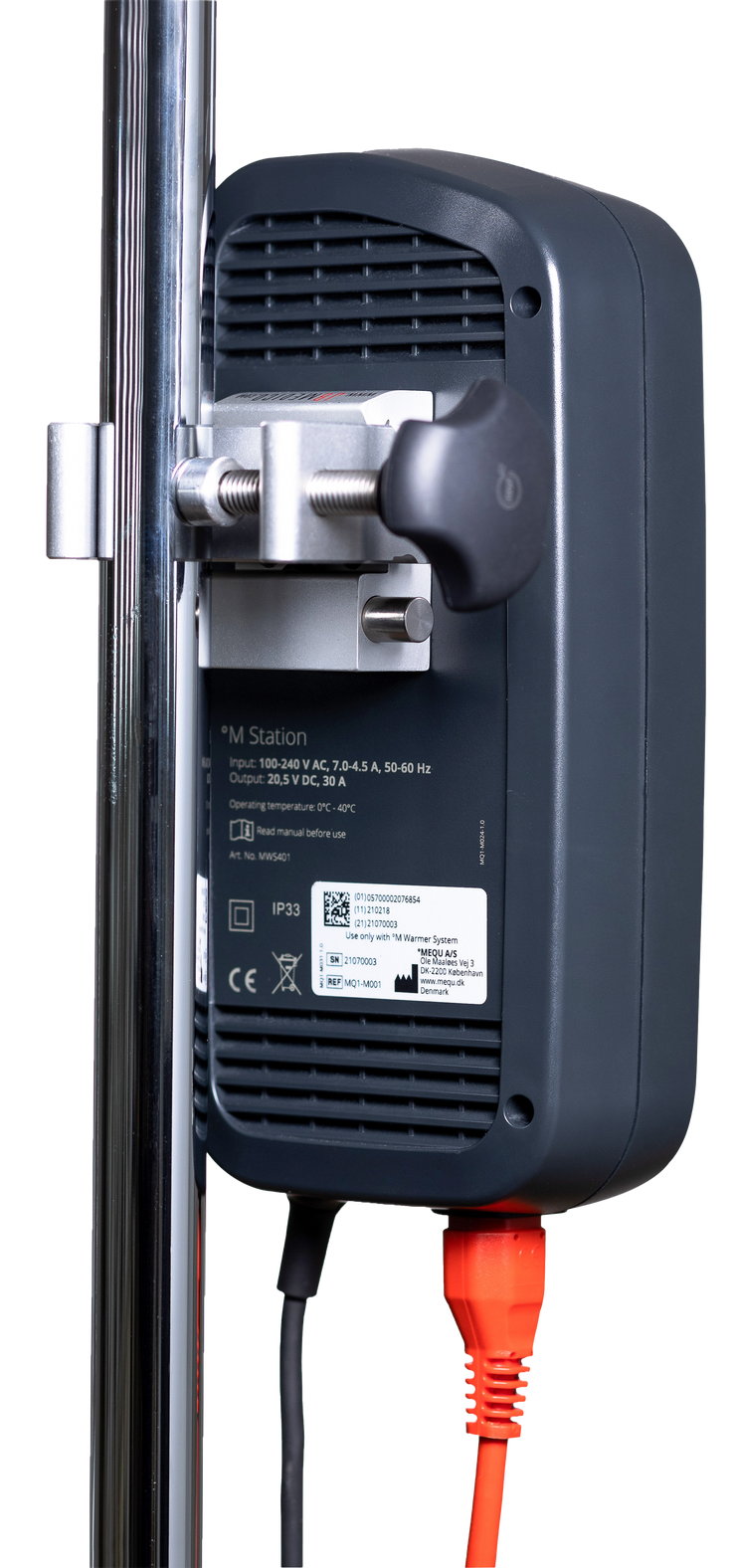

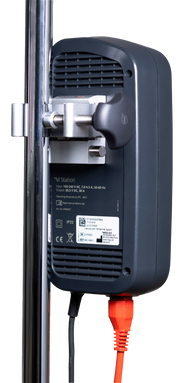

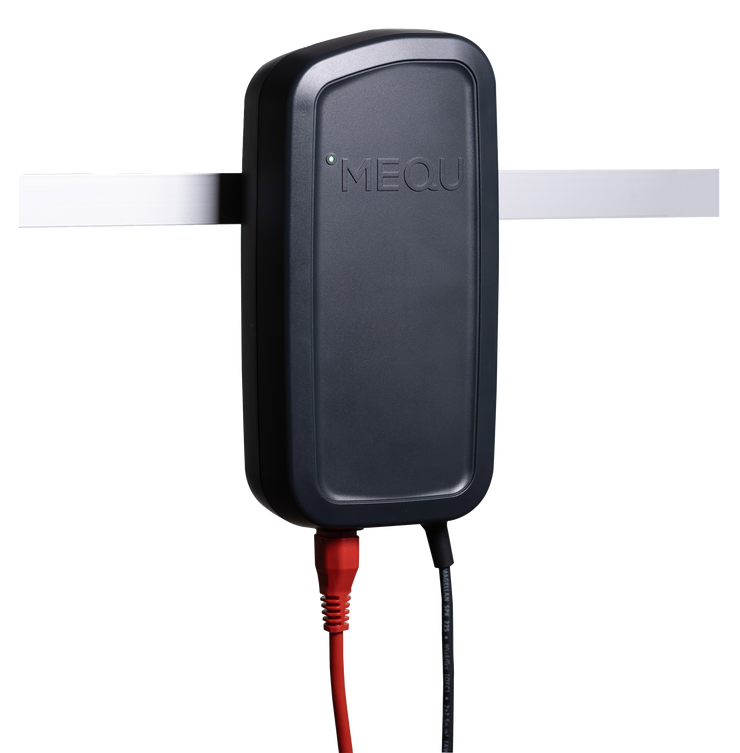

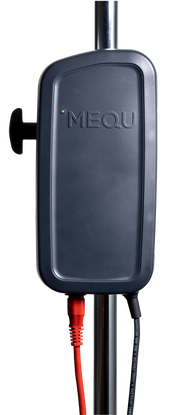

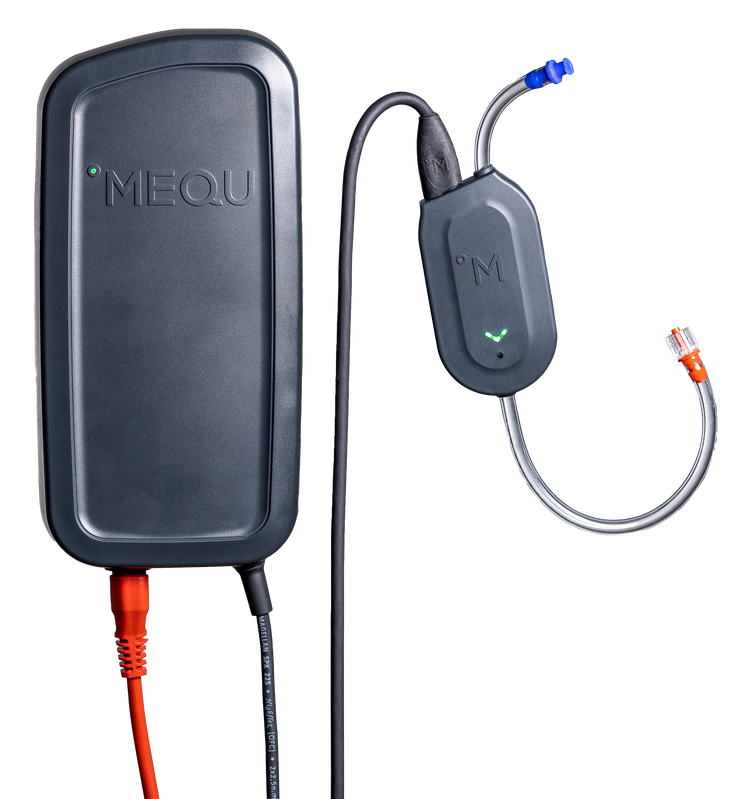

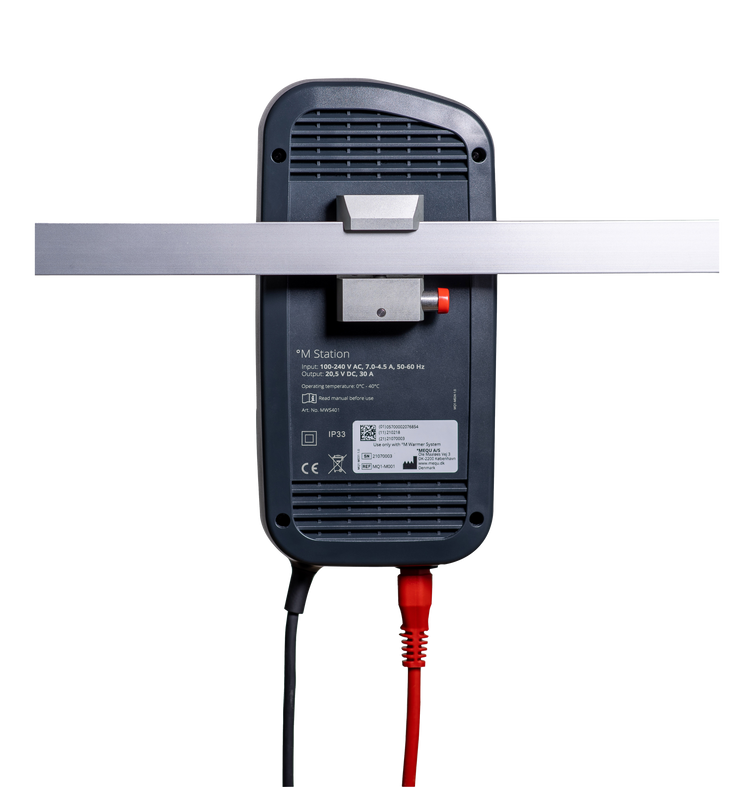

The °M Station is an AC power supply (100-230VAC) for the single-use °M Warmer. It is optimized for use in hospitals, such as emergency rooms and operating theaters, and ensures a continuous flow of warm fluids as long as needed.

OPERATING PARAMETERS

Max Normothermic Flow Rate (input temp. of 41°F, output temp. of 96.8°F)

150 ml/min, 9L per hour

Output Target Temperature Range

102.2°F +/- 37.4°F

AC POWERED °M STATION

Input Voltage

100-240 VAC

Input Current

7.0-4.3 A

Input Frequency

50-60 Hz

Output Voltage

20.5 VDC

Output Current

13.5 A

Electrical Compliance

EN 60601-1


Size: Power Pack 1.75 in (W); 9.5 in (L); 2.25 in (D)

 cable length (to °M Warmer) 9 ft

•AC charger: 3 in (W); 4.5 in (L); 1.75 in (H);

cable length 5.5 ft

•DC charger: 2.5 in (W); 4.25 in(L); 1.5 in (H);

cable length (to power source) 4.5 ft;

Weight: °M Station 50.4 oz

 AC Charger: 8.8 oz•DC Charger: 19.75 oz
